Protection Methods For Dust Explosions

When combustion occurs, the deflagration’s pressure will challenge the structural integrity of the vessel and will propagate into connected ducts and equipment, resulting in even greater damage. Various explosion protection methods are used to quickly and reliably reduce the vessel’s pressure and to protect upstream and downstream equipment.

Fike explosion venting installed

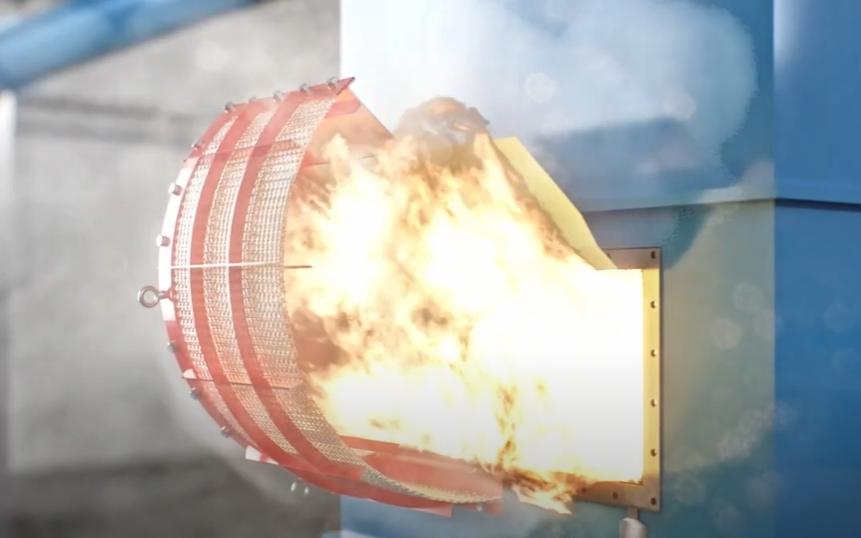

Explosion vents are installed on the vessel and designed to open at a controlled pressure, providing a planned pathway for expanding gasses and flames to escape in outdoor applications.

HRD Installed

Suppression systems inject suppression agent into the protected volume to chemically extinguish the combustion reaction and reduce the expanding pressure and flames propagating toward the inlet and outlet.

DFI passive isolation

Explosion isolation systems, which include mechanical explosion isolation valves and chemical barriers, ensure a deflagration is contained to the vessel from which it originated and protects connected upstream and downstream equipment.

Test Explosion Protection On Your Equipment

This easy-to-use tool helps confirm which protection methods are available for your equipment based on its handled dust type, size, location and more. Results and recommendations are then emailed to you for your records.

Get Started

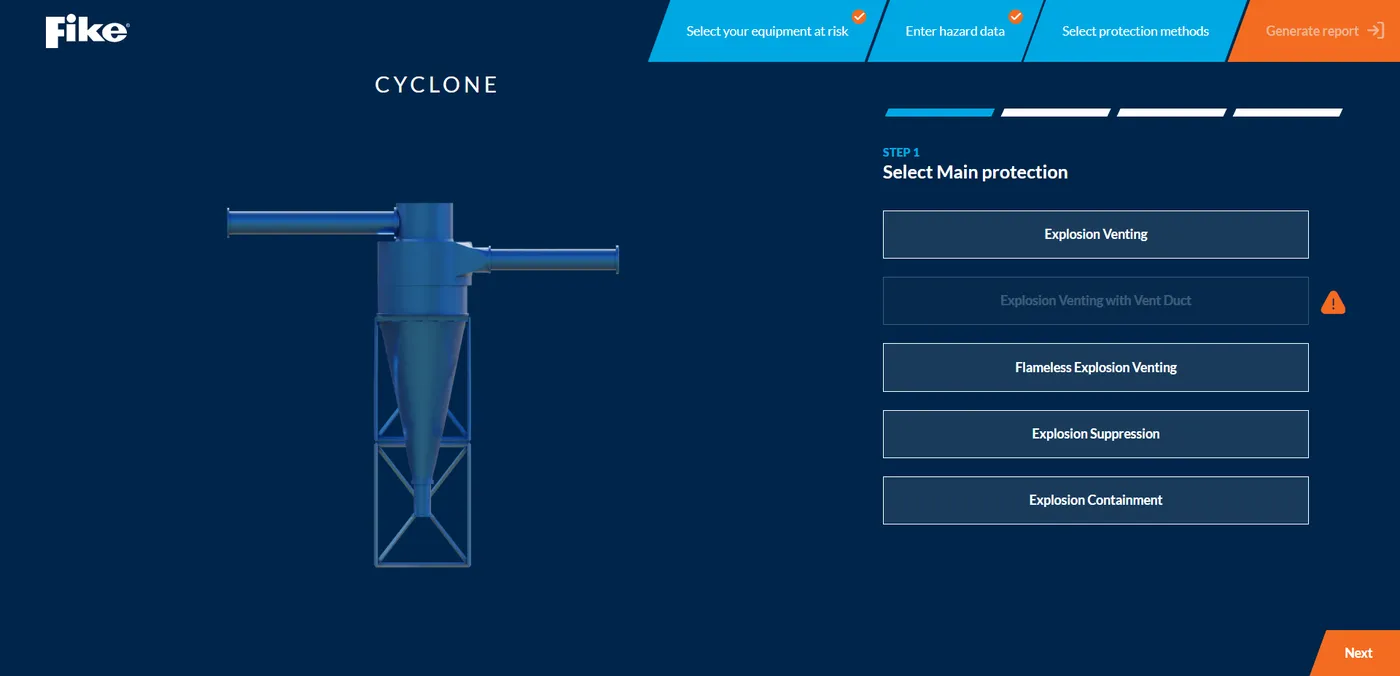

EPMT - Cyclone

Fike explosion protection systems are supported by our:

system design team

System Design Team

Determines hardware type, size, quantity and position to meet your protection objectives and minimize effects on your daily operation.

field service team

Global Field Service Team

May help with installation, commissioning and maintenance of your explosion protection system to confirm compliance with standards and the safety of employees.

Innovation Center

Testing & Innovation Center

Ensures Fike products meet applicable testing standards and are validated to perform under real-world conditions they may experience during an actual deflagration.

Explosion Detection & Control

Less than 2 ms electronic delay between presence of explosion pressure and activation of suppression and isolation devices ensures low Total Suppressed Pressures, closer installation of isolation devices to the protected volume and a reduced total cost of ownership.

Control Visualization Pressure Detection Optical Detection

EPACO 137x137

Fike View - Product Slider Photography - 230x137 - COB

Cerex 137x137

IRex 137x137

Name

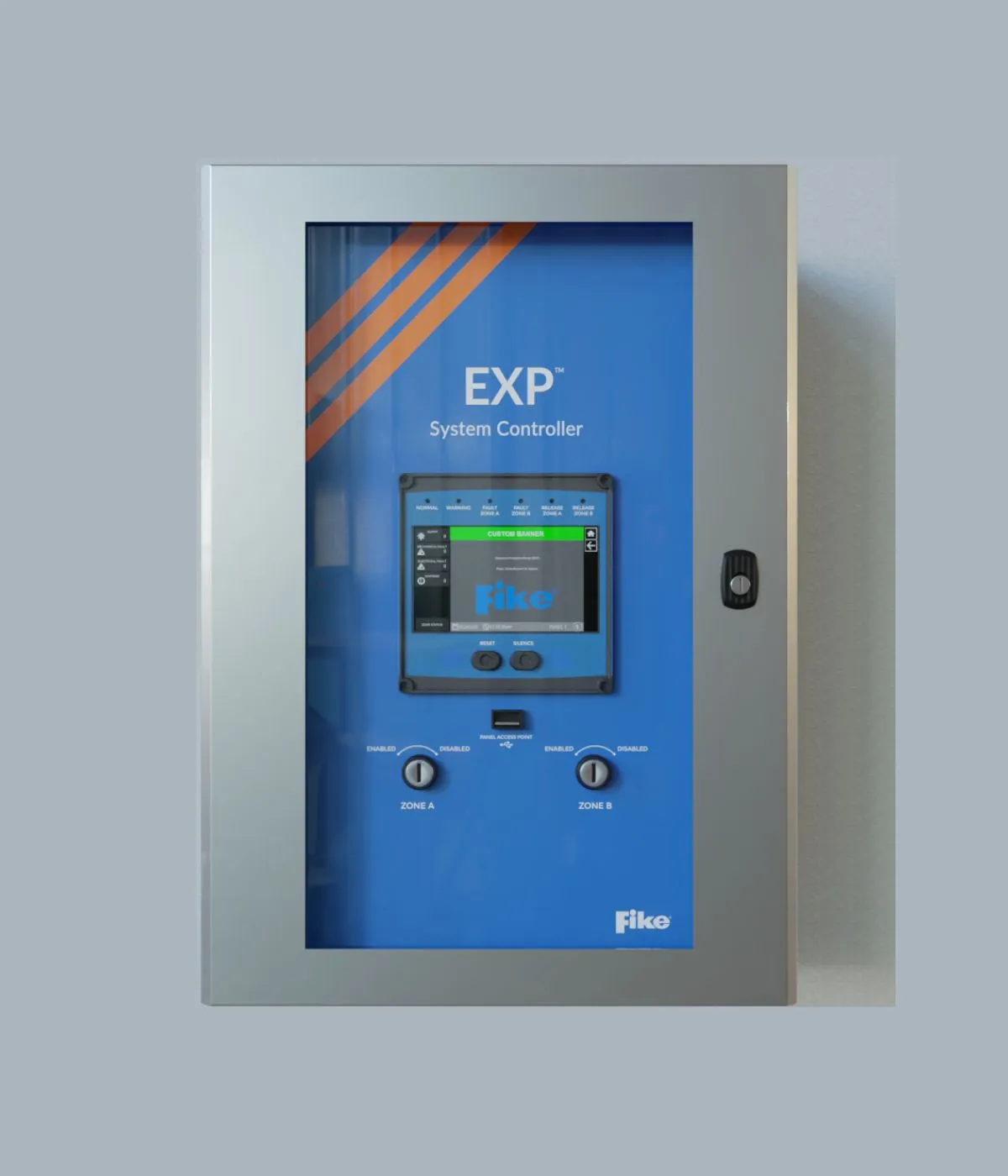

EPACO®

Fike View

Ceramic, Stainless Steel

IR Optical Detector

Function

Explosion protection control system for use with Fike detection, suppression and isolation devices.

Visual monitoring software for Fike explosion protection systems.

Detects pressure rise in the early stages of an explosion.

Detects infrared light radiated by the incipient explosion.

Benefit

  • Modular system allowing cost-effective sizing and expansion
  • Status and safety function supervision of the entire protection system
  • Tailored detection algorithms for the highest possible system stability and reliability
  • Faster troubleshooting through diagostic information
  • Detector drift detection increasing system stability and reliability
  • Long-term data logging for process and protection system optimization
  • Multiple mounting styles and the possibility to configure multiple detectors and functions increase system stability
  • Multiple detector variants for extreme temperature, vibration, hygienic applications and sticky or course solids
  • Multiple mounting styles increase system stability
  • Multiple detector variants for extreme temperature, vibration, hygienic applications and sticky or course solids
  • Fiber optics for multi-spot detection

Approvals

NFPA69 compliant

FM5700 approved

ATEX EN14373 & EN15089 certified

SIL2 IEC61508 certified

NFPA69 compliant

FM5700 approved

ATEX EN14373 & EN15089 certified

NFPA69 compliant

ATEX EN15089 certified

Datasheet

Datasheet

Datasheet

Datasheet

Spark Detection & Suppression

Installed on the processes’ conveying lines, a Fike Spark Detection and Suppression System uses optical detectors to quickly detect even the smallest amounts of infrared radiation. Upon detection, a small amount of extinguishing water mist is injected into the conveying line to extinguish the spark, the process control system is signaled to shut down the process, and the source of the sparks may be rectified before resuming production.

  • Includes various detector options (spark, ember, dual-spark ember), spark detection and suppression system controller, water injection nozzle(s), and water storage and/or feed system.
  • May be used on a wide range of applications, including on conveying lines of dust collectors, cyclones, mills or anywhere else sparks may be generated and conveyed into a dust cloud.
  • VdS and ATEX approved, and are currently in use in more than 30,000 field installations around the world.
  • Multiple control unit sizes to protect up to 36 conveyance lines, and wide selection of pressure boosters, pumps and water storage system.
  • Note: Spark suppression systems use water as an extinguishing agent, which may not be acceptable in certain processes. Alternative protection methods such as pinch valves or gate valves may be used to isolate the spark rather than extinguishing it with water.

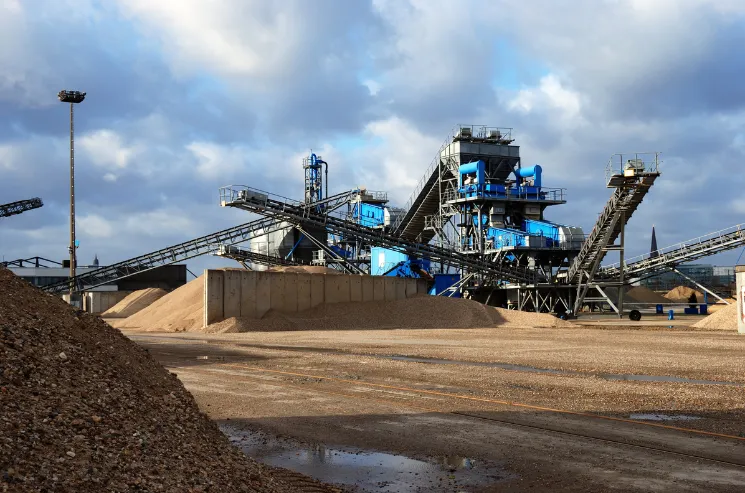

Spark Detection Conveyance
